Specifying hardware for heavy-duty earthmoving and agricultural equipment leaves no room for guesswork. A minor measurement error in fastener selection leads to poorly seated blades, structural shearing under high-load impacts, and costly unplanned downtime. You absolutely need precision to avoid these catastrophic mechanical disasters. Unlike standard commercial fasteners, measuring these components requires accounting for their unique countersunk seating and specialized head geometries. Misinterpreting these physical dimensions often results in exposed threads, loose attachments, or complete structural failure. You simply cannot afford unpredictable equipment failure in harsh operating environments. This guide breaks down the exact measurement protocols, material grade requirements, and installation realities necessary to properly evaluate these critical fasteners. We will help you confidently procure the correct hardware for your specific machinery fleet. You will learn how to measure properly and secure lasting, reliable installations every single time.
Measurement Standard: Length measurements must include the head height to account for flush-mounting, a critical deviation from standard hex bolt protocols.
Head Geometries Dictate Fit: Distinguishing between flat profiles (No. 7) and domed profiles (No. 3) changes the starting point of the caliper measurement.
Dimensional Accuracy ≠ Survival: A perfectly sized bolt will still fail if load requirements (Grade 5 vs. Grade 8/9) are mismatched to the operating environment.
Installation Integrity: Reusing lock nuts or ignoring surface preparation will compromise even a perfectly measured and specified high-strength bolt.

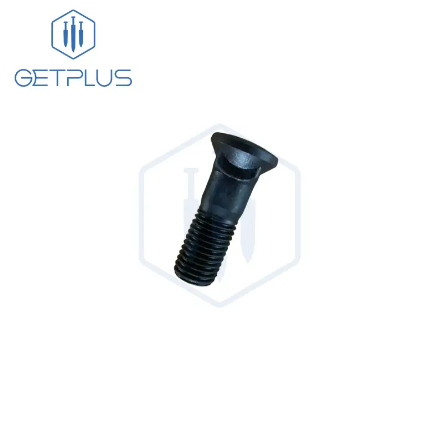

Sourcing teams frequently order incorrect lengths by applying standard hex bolt measurement rules. Standard fasteners measure from beneath the load-bearing surface. You place the caliper under the head and measure down the shank. This approach completely fails when measuring countersunk earthmoving hardware.
You must understand the flush-mount requirement. The primary design function involves creating a smooth, protrusion-free surface across the blade. A protruding head catches rocks, dirt, and debris. This snagging effect creates extreme shear forces. Fastener length calculations must include the total space occupied inside the blade and moldboard.
The measurement protocol demands absolute precision. Your measurements must span from the very top of the head down to the extreme end of the threaded shank. You measure the entire physical length of the fastener. Sourcing Plow Bolts accurately means disregarding conventional fastener habits completely.
Accurate baseline measurements drive successful business outcomes. Proper dimensions prevent you from buying bolts that bottom out in blind holes. Overtly long shanks leave exposed threads vulnerable to heavy corrosion and side impacts. Conversely, undersized lengths fail to provide adequate thread engagement for locking nuts.
Assuming the square neck indicates the start of the measurement line.
Ignoring the dome height on convex head styles.
Estimating thread length visually without verifying the 2D + 0.25 rule.
Different heavy-duty applications demand specific head geometries. Each style changes how you configure your measuring tools. You must identify the head profile before recording any numbers.
Manufacturers design the No. 3 head for bulldozers and high-abrasion environments. The convex shape provides extra wear material against aggressive ground friction. Measuring this style requires identifying the highest point on the bolt.
Open your digital calipers entirely.
Place the fixed jaw on the maximum diameter of the convex crown.
Extend the sliding jaw down to the flat end of the threaded shank.
Record the overall length.
The No. 7 head serves as the industry standard for excavator bucket teeth and smooth-surface graders. It sits perfectly flush, offering zero resistance to passing materials.
Lay a flat straightedge across the top of the head.
Place your caliper jaw against this flat reference plane.
Measure straight down to the absolute tip of the thread.
Ensure the caliper remains perfectly parallel to the shank.
The square neck acts as a critical anti-rotation feature. You must measure the width of this square profile precisely. This section locks into the equipment’s punch-out hole. A loose tolerance allows rotational wear during heavy vibration. Eventually, the fastener wallows out the mounting plate and spins freely.
Manufacturing processes introduce slight dimensional variations. You must account for standard length tolerances when finalizing your specifications. Tight tolerances ensure consistent installations across wide blade spans. Review the tolerance chart below to guide your quality assurance checks.
Length Tolerance Chart by Fastener Diameter | ||
Nominal Diameter Range | Standard Length Tolerance | Quality Impact |
|---|---|---|
1/4" to 3/8" | ±0.03 inches | Critical for light agricultural blades. |
7/16" to 1/2" | ±0.06 inches | Standard for medium-duty grading equipment. |
5/8" to 1" | ±0.12 inches | Acceptable variance for heavy mining machinery. |
A perfectly sized fastener will still snap if you select the wrong steel grade. Dimensional accuracy means nothing without the correct material strength. You must match the tensile rating to your specific operating environment.
Grade 5 hardware relies on carbon steel. This grade offers a 120,000 psi tensile strength. You should select Grade 5 for light-to-medium agricultural applications. In these settings, extreme impact takes a back seat to general cost-efficiency. Snowplows operating on smooth municipal roads often utilize Grade 5 successfully.
Grade 8 hardware utilizes alloy steel for maximum durability. It delivers a massive 150,000 psi tensile strength. Grade 8 represents a mandatory requirement for heavy civil construction, rough grading, and pushing dense materials. High-impact rock removal will instantly shear a Grade 5 component.
Manufacturing processes matter just as much as raw material grades. Specifying a forged plow bolt guarantees continuous grain flow in the metal. Forging aligns the internal steel structure along the contours of the square neck and head. This continuous flow significantly reduces the risk of the head shearing off under sheer horizontal force.
Thermal processing determines field survivability. Evaluating a heat treated plow bolt is critical for high-abrasion environments. Heat treatment ensures optimal core hardness. Grade 8 items usually require a Rockwell hardness rating between C33 and C39. This specific range perfectly balances surface wear resistance with essential internal ductility. Proper ductility prevents brittle snapping during sudden, violent impacts.
Maintenance teams often sabotage perfectly specified hardware during installation. Real-world conditions introduce variables invisible on an engineering spreadsheet. You must enforce strict installation protocols.
High-grade heavy machinery bolts typically pair with Stover-style lock nuts. Manufacturers design these specific nuts to mechanically deform the threads upon installation. This deformation creates intense friction to prevent vibration loosening. Reusing these nuts destroys the new bolt's thread integrity immediately. Lock nuts are strict consumables. You must discard them after a single use.
Failing to clean the mounting template guarantees failure. Mechanics often rush blade replacements. They ignore packed dirt, ice, or deep rust inside the blade's countersunk holes. This debris prevents the hardware from seating completely flush. A raised head changes the effective installed length. It introduces immediate shear stress onto the weakest part of the shank. You must thoroughly wire-brush every mounting hole.
Guessing torque values ruins machinery. Under-torquing allows the square neck to rattle loosely. Heavy vibration will quickly wallow out the expensive mounting hole. Over-torquing proves equally destructive. Excessive tightening stretches the metal past its natural yield point. A stretched fastener loses all holding power and snaps under the first heavy load. Adherence to strict SAE torque charts remains absolutely mandatory.
Evaluating vendors requires looking past basic catalog dimensions. Your procurement team needs a systematic approach to shortlisting suppliers. Sourcing reliable heavy-duty hardware demands strict quality assurance tracking.
Audit your current inventory to consolidate head types wherever possible. Standardization significantly reduces procurement complexity. For instance, many fleets successfully standardize on just No. 3 and No. 7 head geometries. Reducing your total SKU count simplifies ordering and prevents maintenance technicians from grabbing the wrong profile in a rush.
You must ensure vendors provide hardware with clear manufacturer head markings. Grade 8 components legally require these distinct markings. Traceability allows you to track compliance and manage liability effectively. Unmarked alloy hardware often indicates counterfeit or inferior metal. Never accept high-strength fasteners lacking proper factory identification stamps.
Vendor Shortlisting Assessment Chart | |
Evaluation Criteria | Minimum Acceptable Standard |
|---|---|
Material Certification | Provides mill test reports verifying Grade 8 alloy composition. |
Head Style Range | Stocks both No. 3 and No. 7 profiles consistently. |
Traceability Marks | Visible manufacturer stamps matching certification paperwork. |
Manufacturing Process | Clearly specifies forged components over machined alternatives. |
Accurate sizing is only the first step in successful procurement. Heavy machinery demands exact measurement protocols, specific material grades, and flawless installation execution. You must measure from the absolute top of the head to the bottom of the shank. You must choose No. 3 or No. 7 profiles based on your equipment's specific abrasion levels. Furthermore, selecting appropriately forged and heat-treated materials separates robust machinery from constant breakdown risks.
Maintenance and procurement teams can absolutely eliminate the hidden costs of premature fastener failure. Standardize your purchasing criteria around these strict dimensions and load ratings. Discard all used lock nuts immediately during servicing. Enforce wire-brushing protocols before inserting new hardware. Implementing these foundational steps ensures seamless installations, minimizes structural shearing, and maximizes your daily equipment uptime.
A: An "R" designates a Repair Head. Manufacturers make these heads slightly oversized. They fit securely into worn or wallowed-out countersunk holes. Older equipment often suffers from enlarged mounting holes. Using a repair head extends the functional life of the blade. It securely anchors the hardware without requiring expensive welding repairs.
A: Early shearing almost always indicates a grade mismatch or an installation error. You might be using Grade 5 hardware instead of Grade 8. Alternatively, you may have failed to clean the mounting hole. Dirt prevents the countersunk head from seating flush against the steel. This gap introduces severe shear stress.
A: No. Hex bolts protrude above the bearing surface. This disrupts the smooth flow of material over the blade. The exposed head creates an immediate snag point. Hitting a hard obstacle will either damage your load or rip the bolt out entirely. You must maintain a flush profile.
A: Engineering standards use a specific formula for heavy-duty fasteners. You calculate the minimum thread length as 2D + 0.25. You multiply the bolt diameter by two. Then, you add a quarter inch. This calculation ensures sufficient thread engagement. It provides enough surface area for locking nuts to hold securely.
